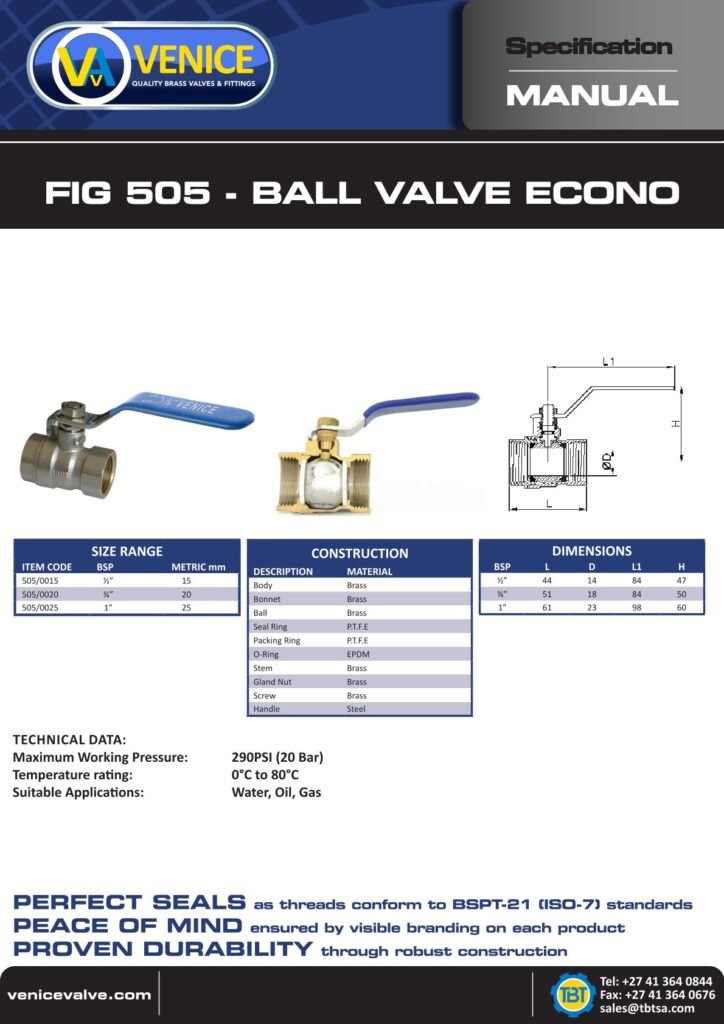

Product Dimensions
Dimensions Table
| BSP | L | D | L1 | H |
|---|---|---|---|---|
| ½" | 44 | 14 | 84 | 47 |
| ¾" | 51 | 18 | 84 | 50 |
| 1" | 61 | 23 | 98 | 60 |
Features:
Full six thread connections tapered to BSP—21 taper.
Fitted with PTFE seals.
Pressure rating shown on valve body.
Technical Data
Maximum Working Pressure:
Up to 20 BAR
Temperature Rating:
0°C – 80°C
Suitable Applications:
Water, Oil, Gas
Construction Table
| Description | Material |
|---|---|
| Body | Brass |
| Seat | PTFE |
| Ball | Brass |
| Stem | Brass |
| Press Nut | Brass |
| Handle | Steel |
| Hexangular Nut | Brass |
| Gland Packing | PTFE |
