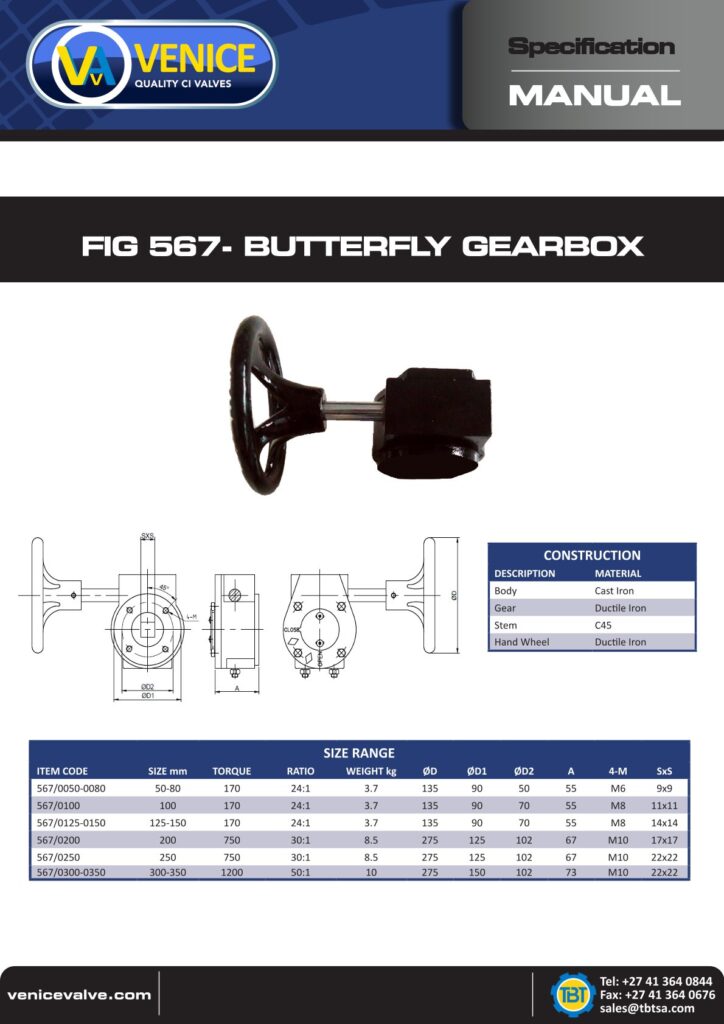

Product Dimensions
Dimensions Table
| Size mm | Torque | Ratio | Weight | Ø | H | D1 | b | d | t | Hand Wheel Connection | Flange |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50-80 | 170 | 24:1 | 3.7 | 150 | 62 | 90 | 3 | 12.7 | 14.1 | PIN 5 x 40 | F05 |
| 100 | 170 | 24:1 | 3.7 | 150 | 62 | 90 | 5 | 15.9 | 18.2 | PIN 5 x 40 | F07 |
| 125-150 | 170 | 24:1 | 3.7 | 150 | 62 | 90 | 5 | 19.05 | 21.35 | PIN 5 x 40 | F07 |
| 200 | 750 | 30:1 | 8.5 | 300 | 78 | 125 | 5 | 22.2 | 24.5 | PIN 6 x 45 | F10 |
| 250 | 750 | 30:1 | 8.5 | 300 | 78 | 125 | 8 | 28.6 | 31.9 | PIN 6 x 45 | F10 |
| 300-350 | 1200 | 50:1 | 10 | 300 | 80 | 140 | 8 | 31.8 | 35.1 | PIN 8 x 45 | F10 |
