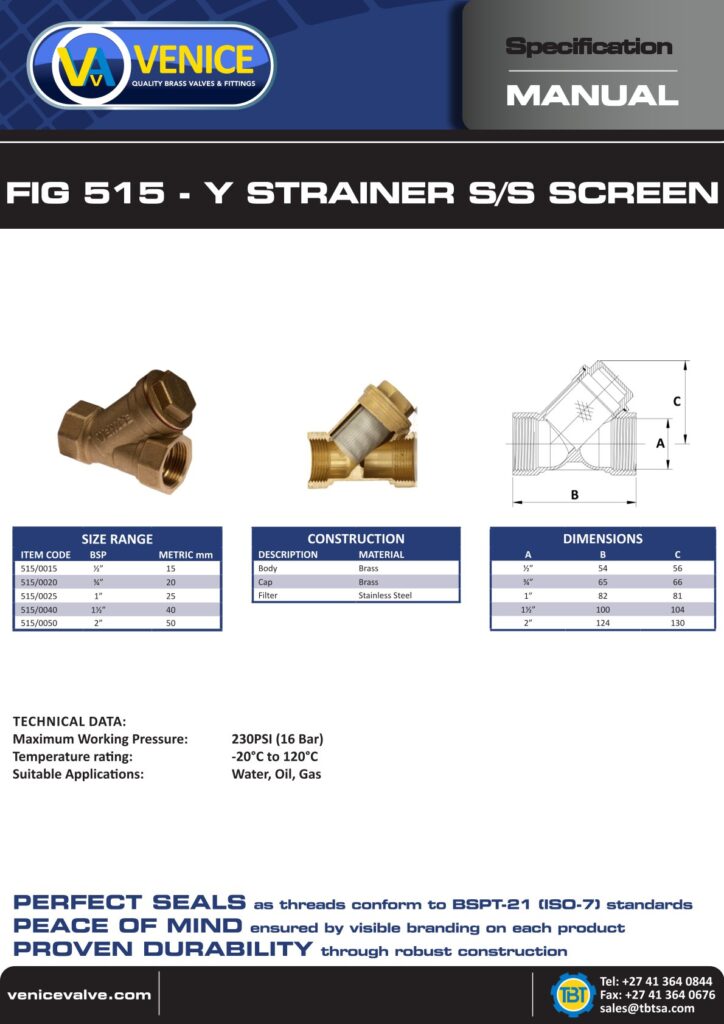

Product Dimensions
Dimensions Table
| Size | Metric Conversion | L | H |
|---|---|---|---|
| 1/2" | 15mm | 54 | 56 |
| 3/4" | 20mm | 65 | 66 |
| 1" | 25mm | 82 | 81 |
| 1 1/2" | 40mm | 100 | 104 |
| 2" | 50mm | 124 | 130 |
Features:
Strainer can be opened to remove waste build up.
Clear arrow on valve body to determine flow direction.
Material:
Brass Body
600 Micron Stainless Steel Screen
Technical Data
Maximum Working Pressure:
230PSI (16 Bar)
Temperature Rating:
-20°C to 120°C
Suitable Applications:
Water, Oil, Gas
Construction Table
| Description | Material |
|---|---|
| Body | Brass |
| Cap | Brass |
| Filter | Stainless Steel |
