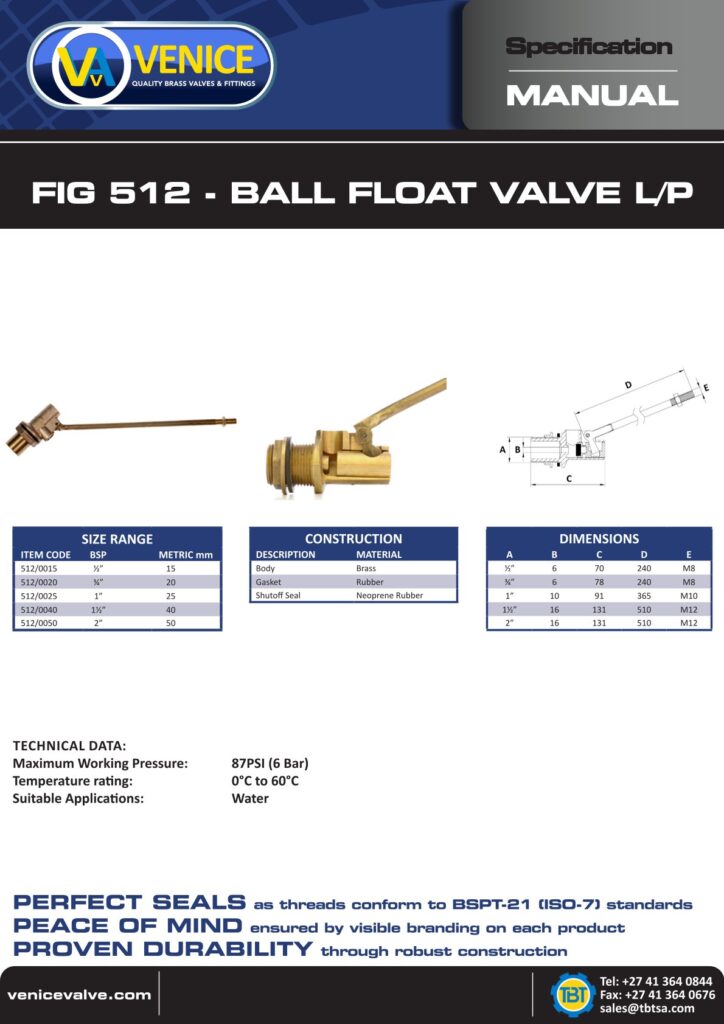

Product Dimensions
Dimensions Table
| Size | Metric Conversion | DN | L | L2 | G2 |
|---|---|---|---|---|---|
| 1/2" | 15mm | 6 | 70 | 240 | M8 |
| 3/4" | 20mm | 6 | 78 | 240 | M8 |
| 1" | 25mm | 10 | 91 | 365 | M10 |
| 1 1/2" | 40mm | 16 | 131 | 510 | M12 |
| 2" | 50mm | 16 | 131 | 510 | M12 |
Features:
Used to control liquid levels in tanks or containers.
Complete with rubber sealing gasket and locknut.
**SPARE ARMS AVAILABLE **
Material:
Brass Construction
NBR Seat
Technical Data
Maximum Working Pressure:
87PSI (6 Bar)
Suitable Applications:
Water
Construction Table
| Description | Material |
|---|---|
| Body | Brass |
| Gasket | Rubber |
| Shutoff Seal | Neoprene Rubber |
