Features:

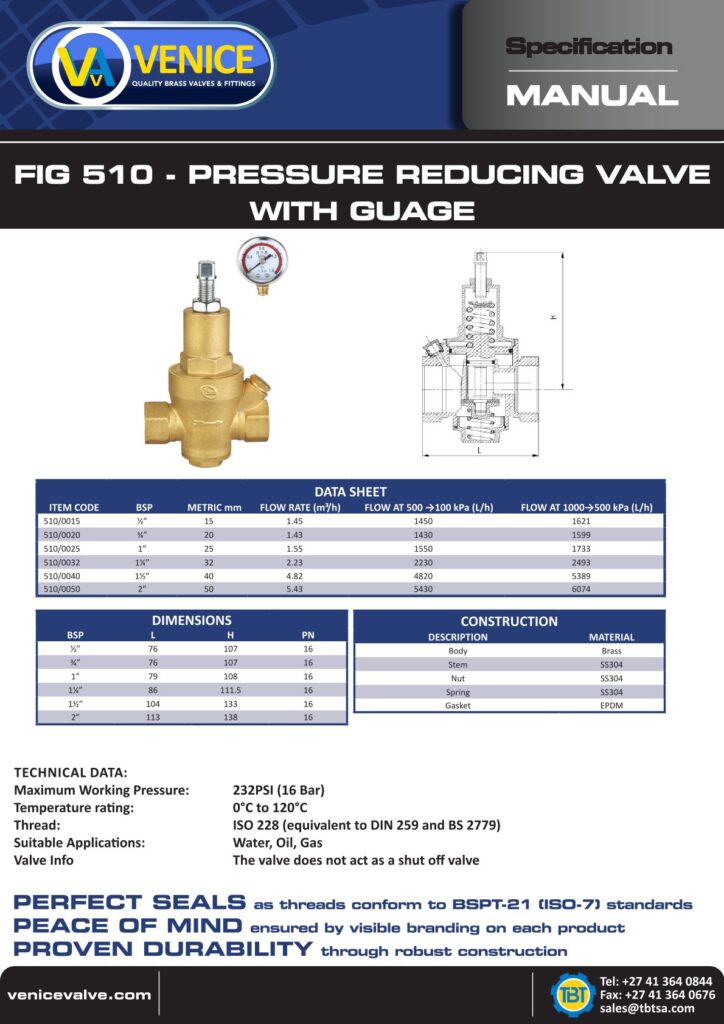

Designed to withstand even the toughest environments, the pressure reducing valve is a hydraulically operated, diaphragm actuated control valve that reduces higher upstream pressure to lower constant downstream pressure—regardless of the fluctuating demand or the varying upstream force. Essentially, the valve maintains a steady state of pressure downstream, heedless of flow.

My Pressure Conversion
=
Powered by CalculateStuff.com

Product Dimensions

Dimensions Table

BSPLHPN
½"7610716
¾"7610716
1"7910816
1¼"86111.516
1½"10413316
2"11313816

Technical Data

Maximum Working Pressure:
Up to 16 BAR

Temperature Rating:
0˚C to 120˚C

Suitable Applications:
Water, Oil, Gas



Construction Table

DescriptionMaterial
BodyBrass
StemSS304
NutSS304
SpringSS304
GasketEPDM
