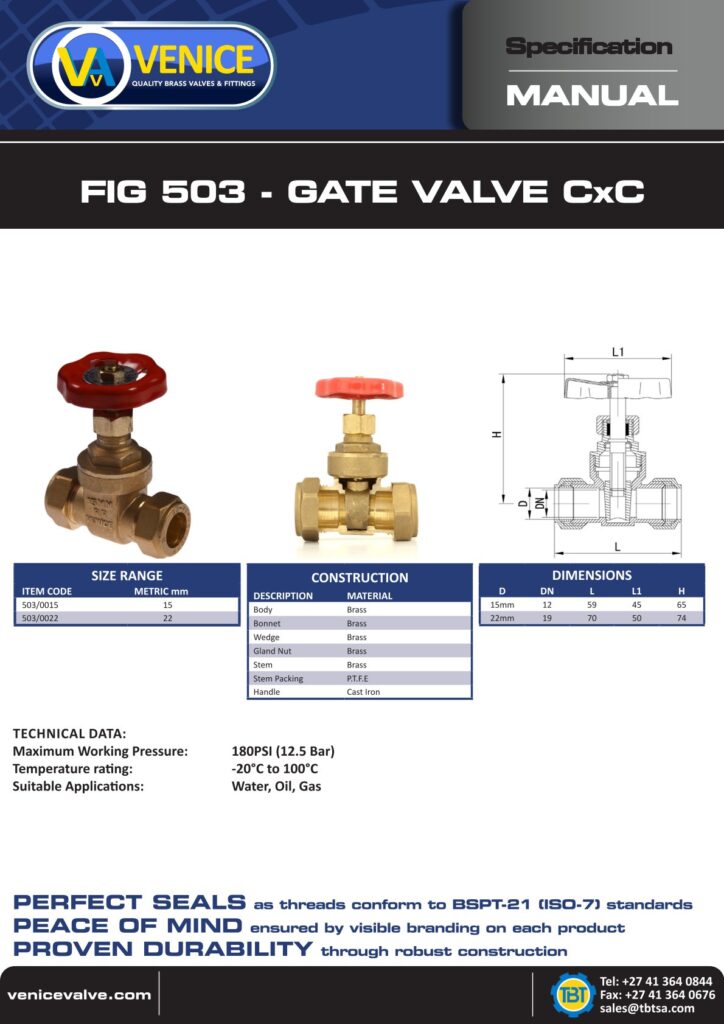

FIG 503 – Brass Gate Valve CxC

Features:
Pressed Steel Hand Wheel.
Copper x copper connection used for plumbing on copper and polycop pipe.
Full opening wedge to give reduced friction for uninterrupted flow.
Pressure rating shown on valve body.

Material:
Brass Body, Pressed Steel Handle

ADD TO QUOTE
[cs_pressure_conversion_calc title='My Pressure Conversion' text_color='#000000' background_color='#FFFFFF' header_color='#315aa2' header_text_color='#FFFFFF' border_color='#e1e0e0']

Product Dimensions

Dimensions Table

SizeMetric ConversionDNLL1H
503/001515mm12594565
503/002222mm19705074

Technical Data

Maximum Working Pressure:
Up to 12.5 BAR

Temperature Rating:
0°C – 120°C

Suitable Applications:
Water, Oil, Gas



Construction Table

MaterialDescription
BrassBonnet
BrassWedge
BrassGland Nut
BrassStem
PTFEStem Packaging
Pressed SteelHand Wheel
