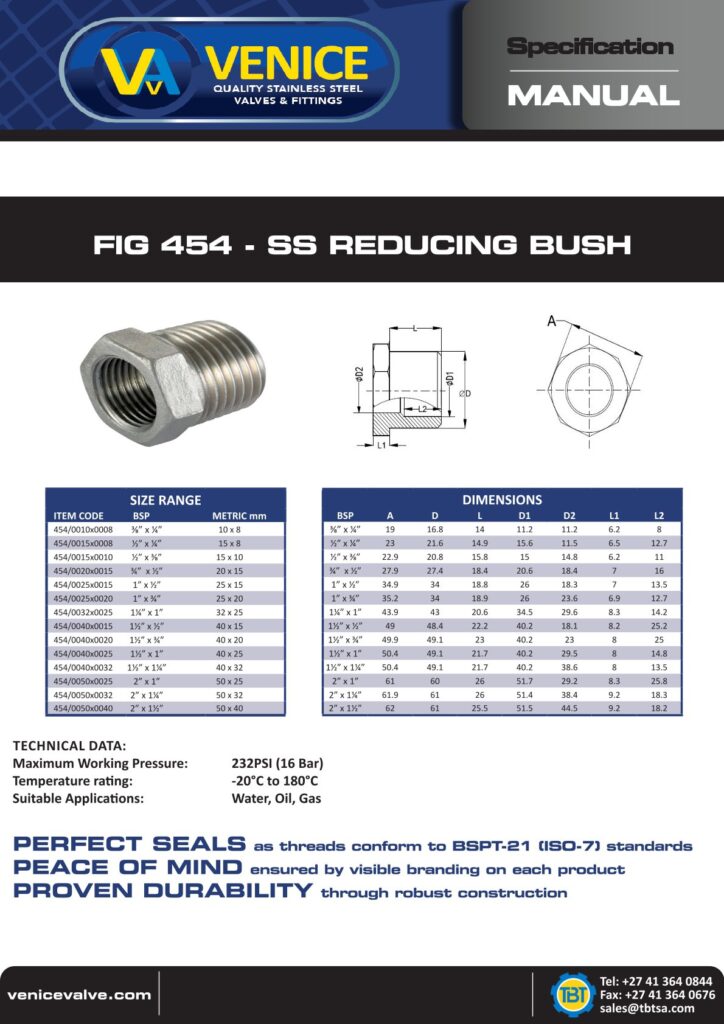

FIG 454 - SS REDUCING BUSH

Features:
There are a variety of stainless steel fittings on the market, the most common ones are bushings, caps, couplings, crosses, elbows, locknut, plugs, tees, unions and valves. The most commonly used grades are 304 and 316, both are available in a vast size range. No matter the plumbing situation, there is a stainless steel fitting for the job.

Product Dimensions
Technical Data

Product Dimensions

Dimensions Table

BSP	A	D	L	D1	D2	L1	L2
⅜” x ¼”	19	16.8	14	11.2	11.2	6.2	8
½” x ¼”	23	21.6	14.9	15.6	11.5	6.5	12.7
½” x ⅜”	22.9	20.8	15.8	15	14.8	6.2	11
¾” x ½”	27.9	27.4	18.4	20.6	18.4	7	16
1” x ½”	34.9	34	18.8	26	18.3	7	13.5
1” x ¾”	35.2	34	18.9	26	23.6	6.9	12.7
1¼” x 1”	43.9	43	20.6	34.5	29.6	8.3	14.2
1½” x ½”	49	48.4	22.2	40.2	18.1	8.2	25.2
1½” x ¾”	49.9	49.1	23	40.2	23	8	25
1½” x 1”	50.4	49.1	21.7	40.2	29.5	8	14.8
1½” x 1¼”	50.4	49.1	21.7	40.2	38.6	8	13.5
2” x 1”	61	60	26	51.7	29.2	8.3	25.8
2” x 1¼”	61.9	61	26	51.4	38.4	9.2	18.3
2” x 1½”	62	61	25.5	51.5	44.5	9.2	18.2

Technical Data

Maximum Working Pressure:
232PSI (16 Bar)

Temperature Rating:
-20°C to 180°C

Suitable Applications:
Water, Oil, Gas
