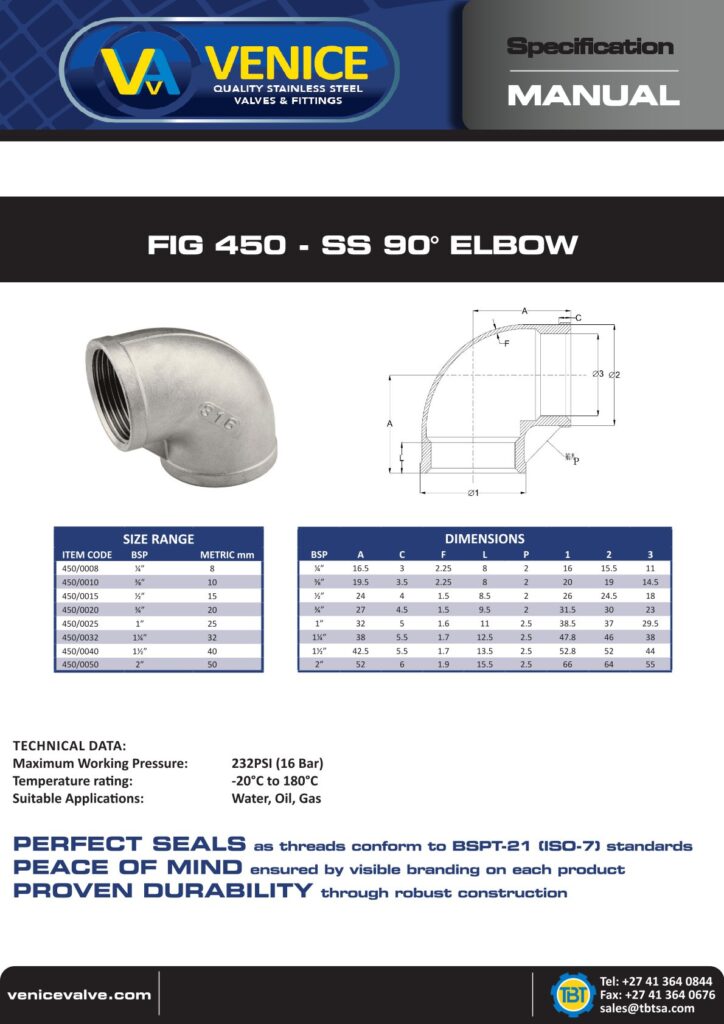

Product Dimensions
Dimensions Table
| BSP | A | C | F | L | P | 1 | 2 | 3 |
|---|---|---|---|---|---|---|---|---|
| ¼” | 16.5 | 3 | 2.25 | 8 | 2 | 16 | 15.5 | 11 |
| ⅜” | 19.5 | 3.5 | 2.25 | 8 | 2 | 20 | 19 | 14.5 |
| ½” | 24 | 4 | 1.5 | 8.5 | 2 | 26 | 24.5 | 18 |
| ¾” | 27 | 4.5 | 1.5 | 9.5 | 2 | 31.5 | 30 | 23 |
| 1” | 32 | 5 | 1.6 | 11 | 2.5 | 38.5 | 37 | 29.5 |
| 1¼” | 38 | 5.5 | 1.7 | 12.5 | 2.5 | 47.8 | 46 | 38 |
| 1½” | 42.5 | 5.5 | 1.7 | 13.5 | 2.5 | 52.8 | 52 | 44 |
| 2” | 52 | 6 | 1.9 | 15.5 | 2.5 | 66 | 64 | 55 |
