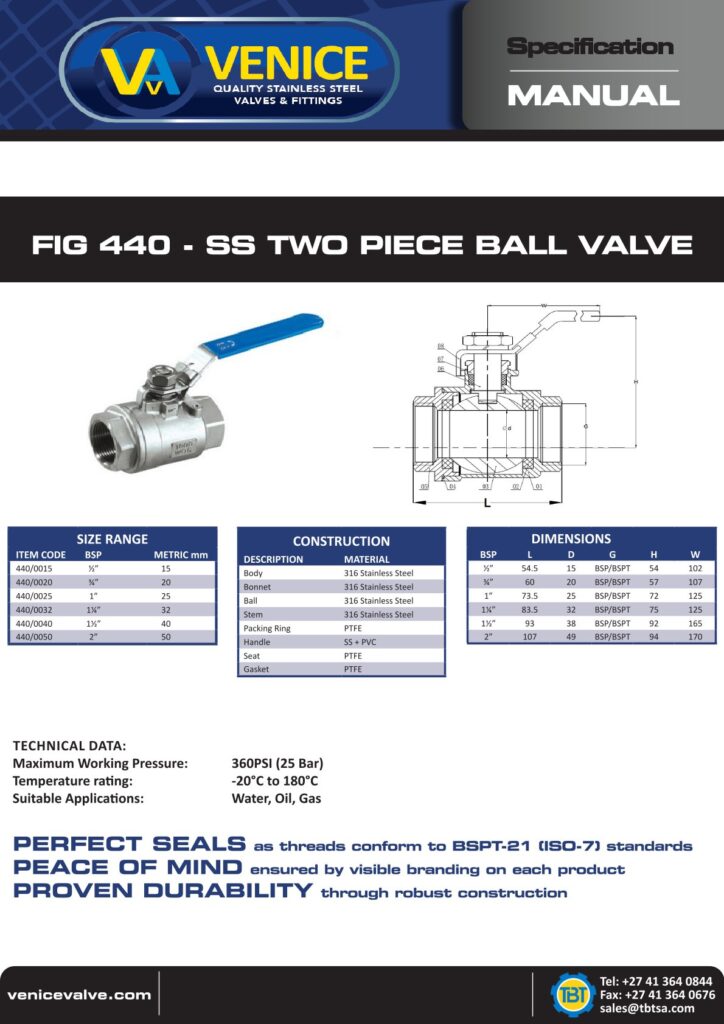

Product Dimensions
Dimensions Table
BSP | L | D | G | H | W |
---|---|---|---|---|---|
½” | 54.5 | 15 | BSP/BSPT | 54 | 102 |
¾” | 60 | 20 | BSP/BSPT | 57 | 107 |
1” | 73.5 | 25 | BSP/BSPT | 72 | 125 |
1¼” | 83.5 | 32 | BSP/BSPT | 75 | 125 |
1½” | 93 | 38 | BSP/BSPT | 92 | 165 |
2” | 107 | 49 | BSP/BSPT | 94 | 170 |
Features:
Stainless as a material is much more corrosion-resistant than brass. This is an important thing to pay attention to, especially when it comes to valves. Because valves are meant to open and close, corrosion can cause big issues. If there is too much corrosion, this may cause a Ball Valve to break or become unable to move. Stainless Steel Ball Valves will hold up much better to harsher water types. This will ensure a longer lasting valve.
BSP | L | D | G | H | W |
---|---|---|---|---|---|
½” | 54.5 | 15 | BSP/BSPT | 54 | 102 |
¾” | 60 | 20 | BSP/BSPT | 57 | 107 |
1” | 73.5 | 25 | BSP/BSPT | 72 | 125 |
1¼” | 83.5 | 32 | BSP/BSPT | 75 | 125 |
1½” | 93 | 38 | BSP/BSPT | 92 | 165 |
2” | 107 | 49 | BSP/BSPT | 94 | 170 |
Maximum Working Pressure:
360PSI (25 Bar)
Temperature Rating:
-20°C to 180°C
Suitable Applications:
Water, Oil, Gas
Description | Material |
---|---|
Body | 316 Stainless Steel |
Bonnet | 316 Stainless Steel |
Ball | 316 Stainless Steel |
Stem | 316 Stainless Steel |
Packing Ring | PTFE |
Handle | SS + PVC |
Seat | PTFE |
Gasket | PTFE |
