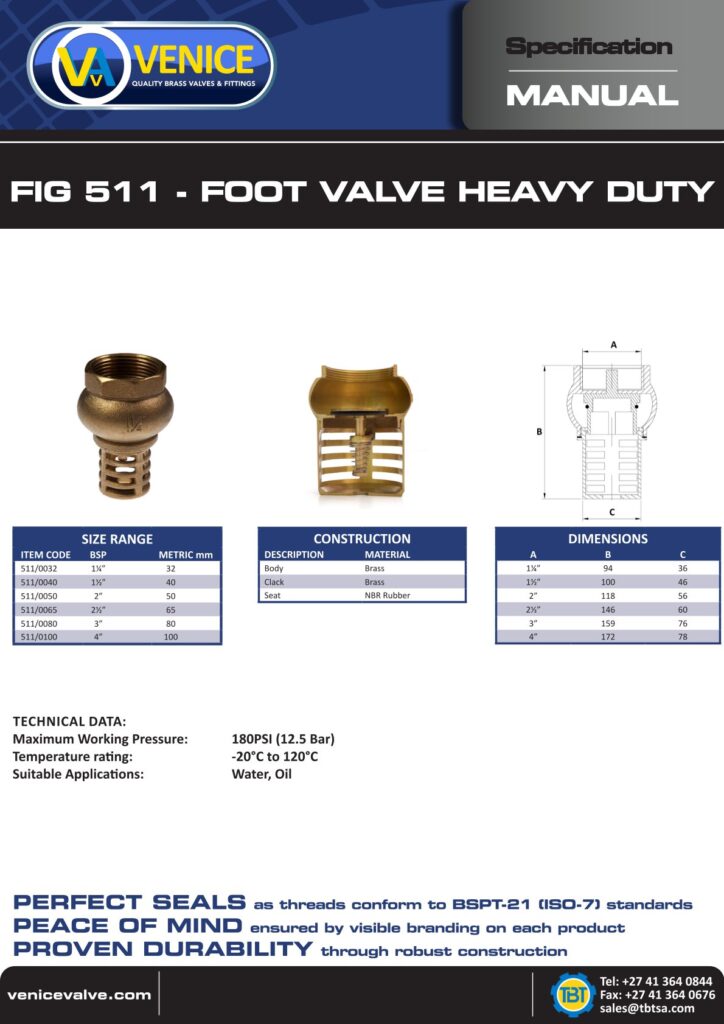

Features:
Installed at the bottom of pump suction lines to maintain the head of water when pump is not in use.
All brass construction.

Material:
Brass Body, Brass Clack, NBR Rubber Seat

My Pressure Conversion
=
Powered by CalculateStuff.com

Product Dimensions

Dimensions Table

SizeMetric ConversionHD
1 1/2"40mm10046
2"50mm11856
2 1/2"65mm14660
3"80mm15976
4"100mm17278

Technical Data

Maximum Working Pressure:
180PSI (12.5 Bar)

Temperature Rating:
-20°C to 120°C

Suitable Applications:
Water, Oil



Construction Table

DescriptionMaterial
BodyBrass
ClackBrass
SeatNBR Rubber
