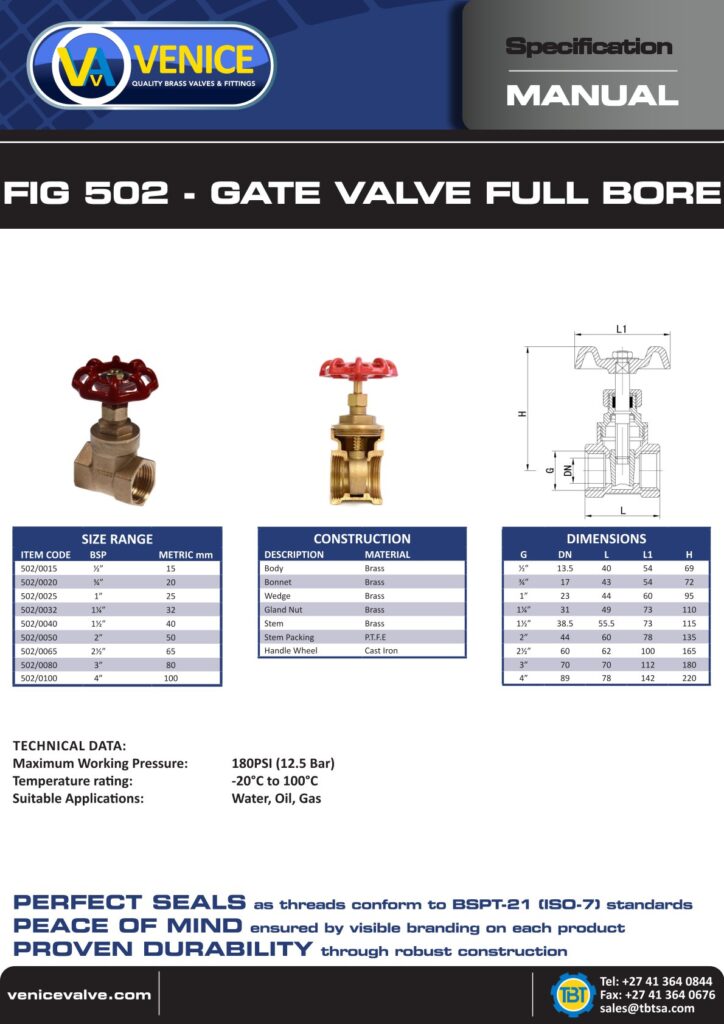

FIG 502 - Brass Gate Valve Full Bore

Features:
Full opening wedge to give reduced friction for uninterrupted flow.
Screwed BSP to BS21 taper.
Pressure rating shown on valve body.

Pressure Conversion
=
Powered by CalculateStuff.com

Dimensions Table

SizeMetric ConversionDNLL1H
1/2"15mm13.5405469
3/4"20mm17435472
1"25mm23446095
1 1/4"32mm314979110
1 1/2"40mm38.555.579115
2"50mm446078135
2 1/2"65mm6062100165
3"80mm7070112180
4"100m8978142220
