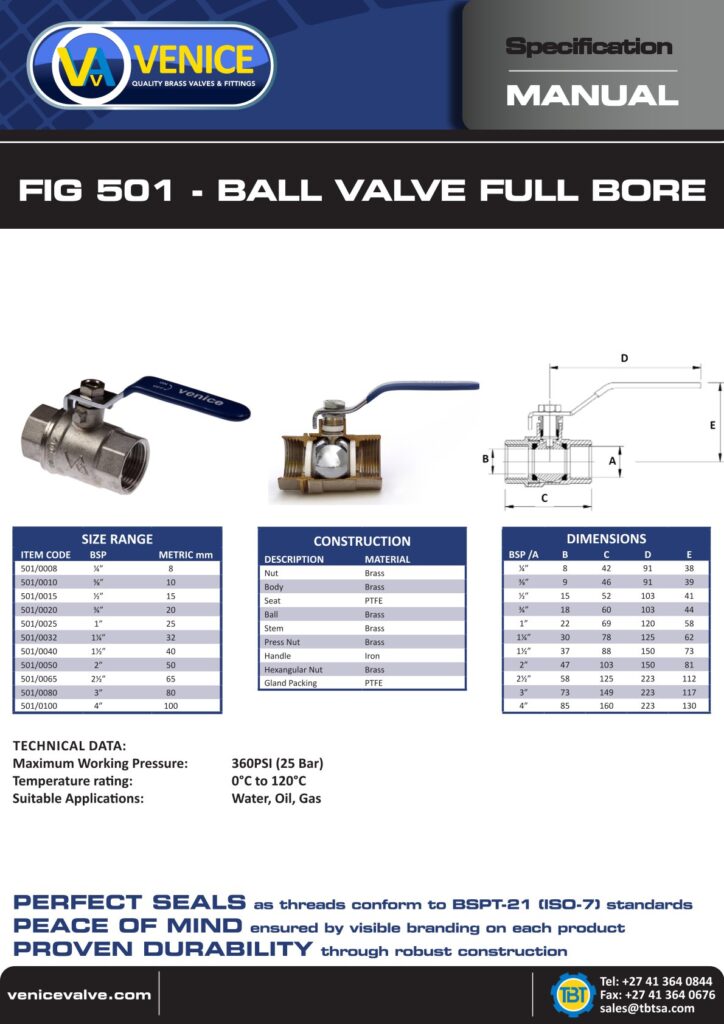

FIG 501 - Brass Ball Valve Full Bore

Features:
Fitted with large ball so that the hole in the ball equates with the bore in the pipeline.
Full six thread connections tapered to BSP—21 taper.
Fitted with PTFE seals.
Pressure rating shown on valve body.

Pressure Conversion
=
Powered by CalculateStuff.com

Dimensions Table

SizeABCDE
1/4"1/4"8429138
3/8"3/8"9469139
1/2"1/2"155210341
3/4"3/4"186010344
1"1"226912058
1 1/4"1 1/4"307812562
1 1/2"1 1/2"378815073
2"2"4710315081
2 1/2"2 1/2"58125223112
3"3"73149223117
4"4"89160223130
