Features:
There are a variety of stainless steel fittings on the market, the most common ones are bushings, caps, couplings, crosses, elbows, locknut, plugs, tees, unions and valves. The most commonly used grades are 304 and 316, both are available in a vast size range. No matter the plumbing situation, there is a stainless steel fitting for the job.

My Pressure Conversion
=
Powered by CalculateStuff.com

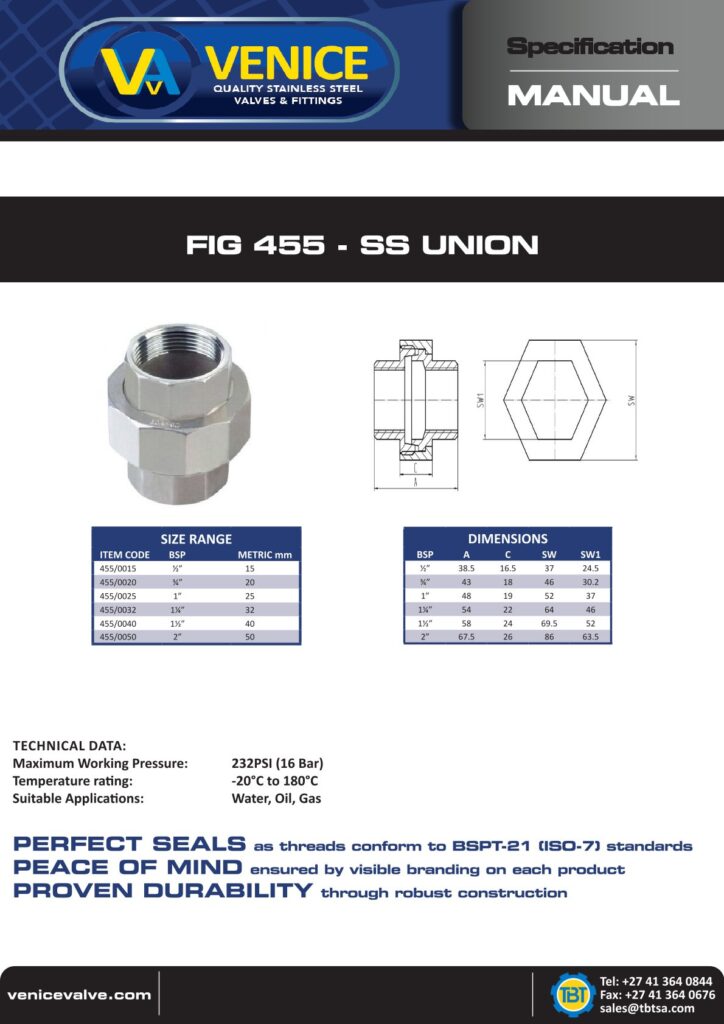

Product Dimensions

Dimensions Table

BSPACSWSW1
½”38.516.53724.5
¾”43184630.2
1”48195237
1¼”54226446
1½”582469.552
2”67.5268663.5

Technical Data

Maximum Working Pressure:
232PSI (16 Bar)

Temperature Rating:
-20°C to 180°C

Suitable Applications:
Water, Oil, Gas
